Race van/Sports home Layout Guides and prices

Choosing the right layout for your race van/sports home is quite personal — what might be perfect for one person isn't necessarily going to work for someone else. It might be that you need a large garage to fit a motorbike or two for track days or motocross, or a garage for karting, mountain biking, etc. Some people like the idea of a race van type layout just for the convenience of having such a large storage space for everyday use, they can even be used as a work van during the week and then for camping at the weekends, or are great for carrying road or mountain bikes. This page tries to give you examples of the kind of layouts you can fit in certain vans. Most of these race van furniture kits can be adapted to suit different vans. Some layouts give a larger garage but at the expense of your living space. When designing your race van it's always a compromise and you have to decide on the best compromise to suit you. One important thing to consider when choosing a race van layout is your vehicle’s weight-carrying capacity, if you intend on carrying heavy items it's important that you do not exceed this and also that anything is securely fastened.

You can combine different aspects of each layout to help create your ideal conversion. We can also build race van/sports home furniture kits to your design, so if you have any different ideas please let us know.

Please note that all prices are plus VAT.

Front-facing seating, a toilet, a raised bed in the rear, overhead cupboards, and a kitchen counter

1) Fixed Rear Bed / Front Dinette with Walkthrough

  • This layout is based on an L3 Citroen Relay / Peugeot Boxer / Fiat Ducato. The front facing seat in this layout comes metal framed and with two integrated 3 point seat belts. Generally a single front passenger seat is used with this layout to provide a walkthrough from the cab to the rear of the van. Seat swivels are normally fitted also in conjunction with this layout to provide a dinette area. The front facing seat can also be made to slide out and can therefore be used with the front driver seat to form an extra bed. The rear fixed bed can vary in height depending on the amount of storage required. One advantage of a fixed bed is that there is also the option to have a custom sized spring or memory foam mattress for extra comfort.

  • Typical furniture cost for this layout excluding cushions/mattress is £2595 (including metal framed front seat/seatbelts) excluding the top cupboard above the bed or £2795 including the top cupboard above bed as shown in image above.

    Cushions/Mattress available from £495

Race van with side-facing seating, a raised bed with garage space underneath, a toilet, overhead storage and a kitchen counter

2) Compact 2 Berth Race Van layout with garage area

  • This compact race van type layout is based on an L3 Fiat Ducato / Citroen Relay / Peugeot Boxer van. The rear bed can be set at any height but in the image is set around 1200mm high to allow a full sized motorbike to fit in the garage. The front seat set up allows for the use of a single passenger seat and walkthrough type cab. This same style layout can easily be changed to a 4 berth setup if fitted in an Extra Long Relay / Ducato, LWB Sprinter, Transit Jumbo, Iveco Daily, etc.

  • Typical furniture cost for this layout is £1895

    Cushions/Mattress available from £495

Race van with side-facing seating, a raised bed with garage space underneath, a toilet, overhead storage and a kitchen counter

3) 2 / 3 / 4 berth single bike garage race van based on L4 Relay / Boxer / LWB Sprinter

  • This race van type layout is based on an L4 Fiat Ducato / Citroen Relay / Peugeot Boxer van, LWB Sprinter, Iveco Daily etc. The rear bed can be set at any height but in the image is set around 1200mm high to allow a full sized motorbike to fit in the garage. The front seat set up allows for the use of a single passenger seat and walkthrough type cab. This same style layout can easily be changed to a 4 berth setup by adding an L-shape seating area which can convert to a double bed, or by losing the wardrobe to the make the settee larger

  • Typical furniture cost for this layout is £1895

    Cushions/Mattress available from £495

4) 4 berth race van layout with dinette to front

  • This layout is based on the LWB Mercedes Sprinter / Volkswagen Crafter or LWB Iveco Daily, the front dinnette converts to a double bed as well as the raised fixed rear double bed. The beauty of this layout is that 4 extra travelling seats can be created.

  • Price from £2795 including one metal framed seat with seat belts (with second seat made from wood and not for travelling) or £3395 with two

    metal framed seats (giving 4 travel seats in total).

    Cushions / Mattress available from £745

5) 2 / 3 berth with full width bed/garage and walkthrough option to cab

  • This layout provides a very large garage area with forward facing front seat which can incorporate two 3 point seat belts. A small 3rd berth can be created by pulling out the forward facing seat and swivelling the drivers seat.

  • Price for this furniture kit is from £2095 including the front facing seat with seat belts (£2295 with extra overhead cupboard above kitchen)

    Cushions/mattress available from £550

6) 4 berth with L-shaped front seating and semi-full width garage

  • Based on the LWB sprinter / L4 Ducato / Relay etc, this 4 berth layout uses the front L-shape to convert to a double bed as well as the fixed rear garage bed to provide 4 berths.

  • Price from £1695 (£1895 with extra overhead cupboard above kitchen)

    Cushions/Mattress available from £850

7) Compact Race Van with Forward Facing Front Seat

  • This compact race van type layout is based on an L3 Fiat Ducato / Citroen Relay / Peugeot Boxer van. The rear bed can be set at any height but in the image is set around 1200mm high to allow a full sized motorbike to fit in the garage. The front forward facing front with 2 three-point seat belts allows for the use of a single passenger seat and walkthrough type cab. With swivel driver seat this seat can pull out to make an extra berth. This same style layout can easily be changed to a 4 berth setup if fitted in an Extra Long Relay / Ducato, LWB Sprinter, Transit Jumbo, Iveco Daily, etc.

  • Typical cost of this furniture kit is £2495 including metal frame with two 3-point seatbelts

    Cushions/Mattress available from £495

8) Super Compact Race Van with Forward Facing Front Seat

  • This super compact race van type layout is based on an L2/MWB Fiat Ducato / Citroen Relay / Peugeot Boxer van. It may also work on other MWB vans but the extra width of the Ducato/Relay/Boxer is useful with the layout being so compact. The rear bed can be set at any height but in the image is set around 1200mm high to allow a full sized motorbike to fit in the garage. The front forward facing front with 2 three-point seat belts allows for the use of a single passenger seat and walkthrough type cab. The idea behind this super compact race van furniture kit is that the van could be used as a daily driver much easier than a Long or Extra Long Wheelbase vehicle. (Please note: front swivel seats are for illustration only and are not included in our kits)

  • Typical cost of this furniture kit is £2095 including metal frame with two 3-point seatbelts. We could also sell without the double seat as customers may wish to use a mini-bus type double seat in it's place, furniture only without the seat would be £1595. Please also note the front swivel seats are for illustration only and are not included in the kit.

9)4 Berth Large Garage with walkthrough

  • This large race van layout based on LWB Sprinter, LWB Crafter, Iveco Daily etc uses to seats in the front to form a double bed as well as large bed over the rear garage. (Please note: front swivel seats are for illustration only and are not included in our kits)

  • Typical cost of this furniture kit is £2595 including metal frame with 3-point seatbelt. Please note front swivel seats are not included

    Cushions/Mattress available from £850

10) 4 Berth with U shaped front Lounge

  • This large race van layout based on LWB Sprinter, LWB Crafter, Iveco Daily, L4 Citroen Relay/Peugeot Boxer utilises a front U shaped lounge to create a nice seating area for socialises and also converts to form a nice sized double bed. The rear fixed bed provides ample storage space for mountain bikes or motorcycles and there is also a good sized kitchen and toilet cubicle.

  • Typical cost of this furniture kit is from £1895 (or £2095 including overhead cupboard above the kitchen).

    Cushions/Mattress available from £995

11) Small 2 Berth Race Van/ Sports home/Day Van based on LWB High Top (L2H2) Transit Custom or Vauxhall Vivaro / Renault Trafic

  • This compact race van layout provides a large fixed bed and full width garage to give ample storage for a motorcycle/mountain bikes/go kart/etc as well as a nice dinette front seating area and kitchen area, all in a van that could easily be used as a daily vehicle. The lack of toilet cubicle is what allows such a design, but you could always store a portable toilet under the forward facing seat or in the garage area.

  • Typical cost of this furniture kit is £1795 including metal framed seat with two 3-point seatbelts (please note the front swivel seats are for illustration only and are not part of the kit).

    Cushions/Mattress available from £995

12) 4/5 Berth Race Van layout with rear dinette area based on L4 Peugeot Boxer / Citroen Relay / Fiat Ducato

  • By raising the rear seating area (at the expense of the rear overhead lockers) this layout manages to still allow garage space for mountain bikes/scooters/motorcycles but without losing so much of the 'living area' like you do with a traditional race van style layout. A false floor would have need to be utilised as in the images to make the seats comfy to sit on but this could double as extra storage accessible from inside the van.

  • Typical cost of this furniture kit is £2595 including metal frame with 3-point seatbelt (please note the front swivel seats are for illustration only and are not part of the kit).

    Cushions/Mattress available from £995

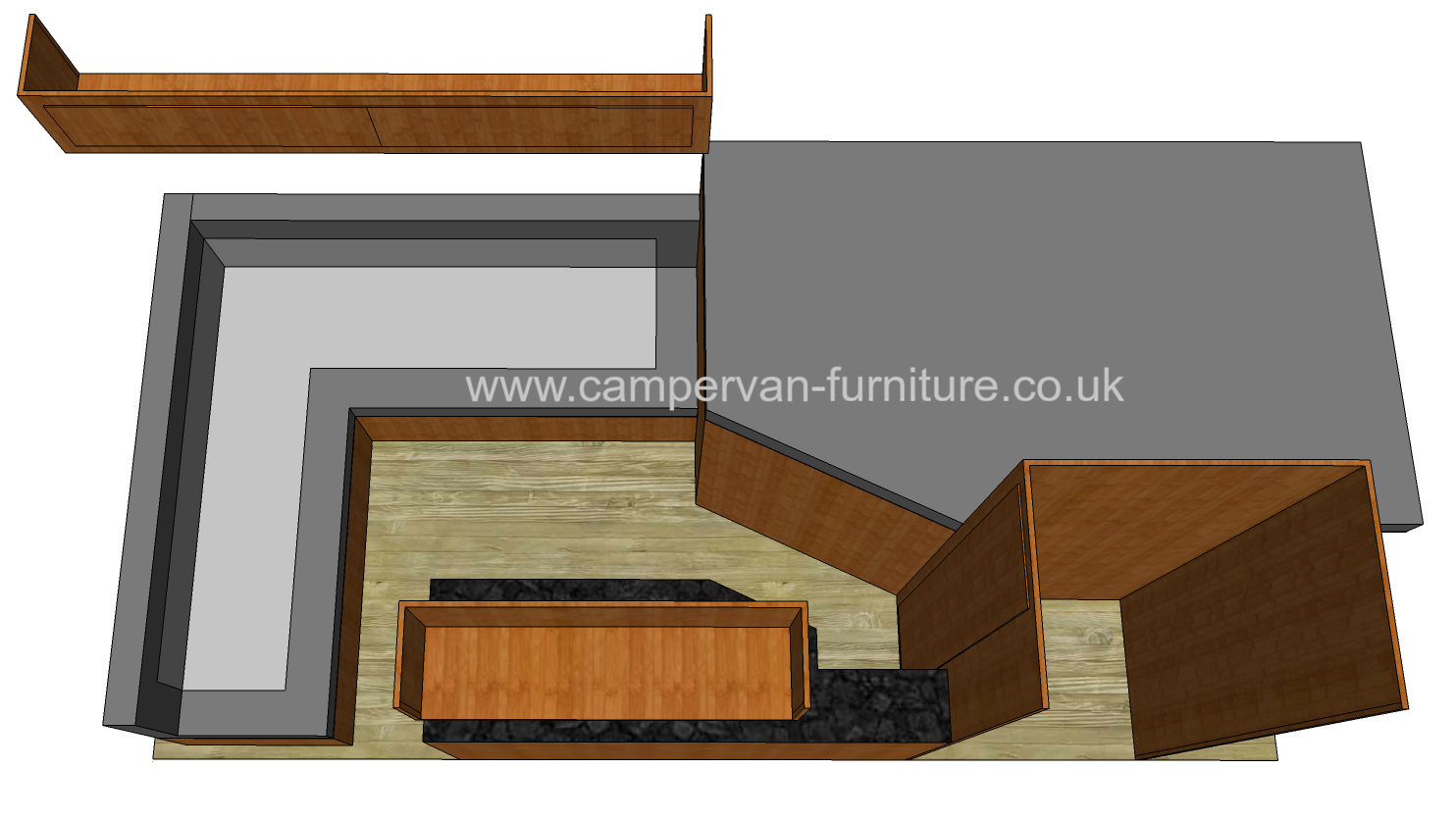

13) 4 Berth Race Van layout with longitudinal garage and L-shape seating based on L3/4 Citroen Relay / Peugeot Boxer Fiat Ducato, LWB or ExLWB Sprinter/Crafter/Iveco Daily

  • This 4 Berth layout gives large garage area / fixed bed with a spacious L-shape seating area at the front which gives a nice space to sit/socialise without the need to swivel the front seats

  • Typical cost of this furniture kit is £1995

    Cushions/Mattress available from £745

Below are some variations of layout 13 to show how it can be adapted to suit various vans and needs of our customers

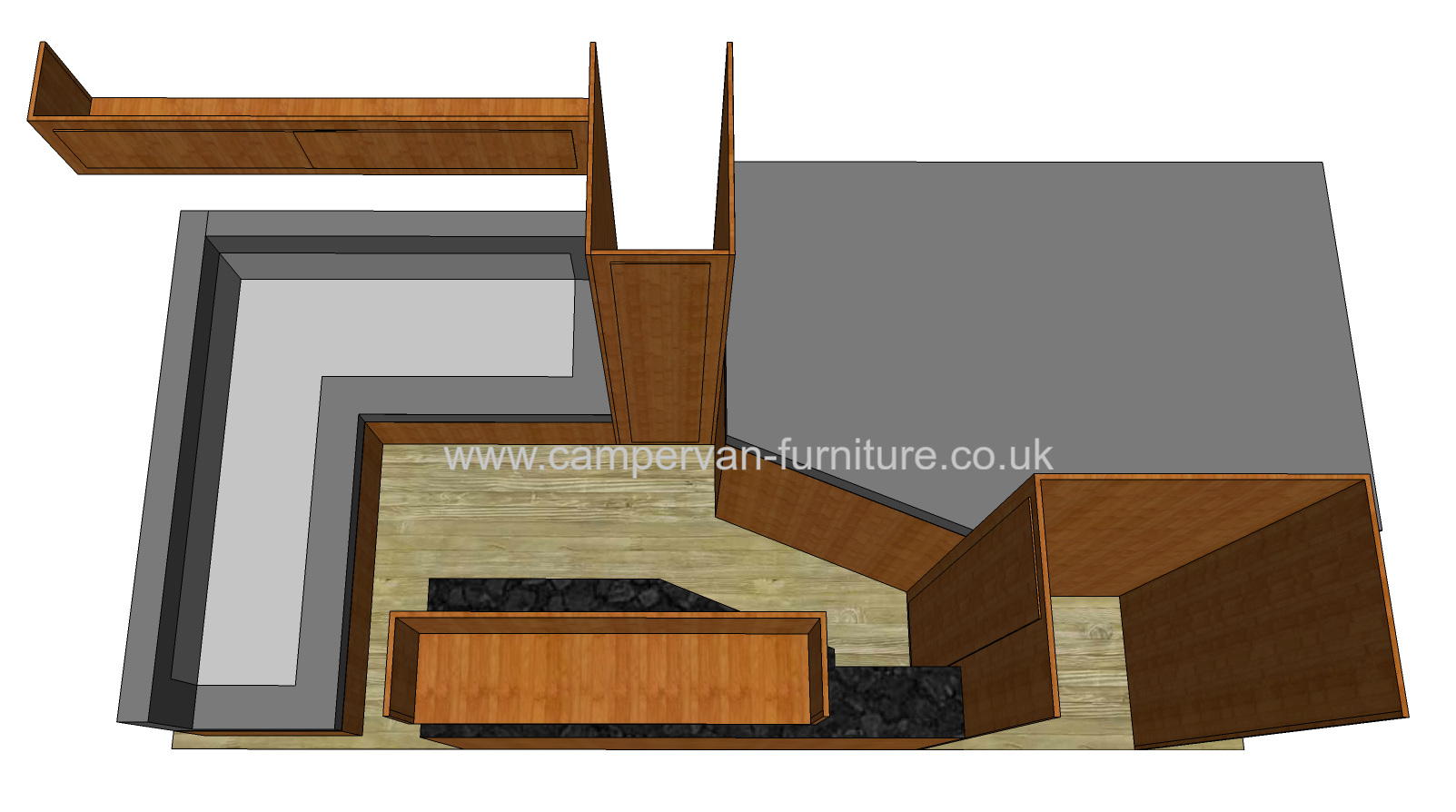

13A) Same as layout 13 but with wardrobe added - 4 Berth Race Van layout with longitudinal garage and L-shape seating based on L3/4 Citroen Relay / Peugeot Boxer Fiat Ducato, LWB or ExLWB Sprinter/Crafter/Iveco Daily

  • This 4 Berth layout gives large garage area / fixed bed. The addition of a wardrobe adds generous storage whilst still allowing a good sized seating area which gives a nice space to sit/socialise without the need to swivel the front seats

  • Typical cost of this furniture kit is £2350

    Cushions/Mattress available from £745

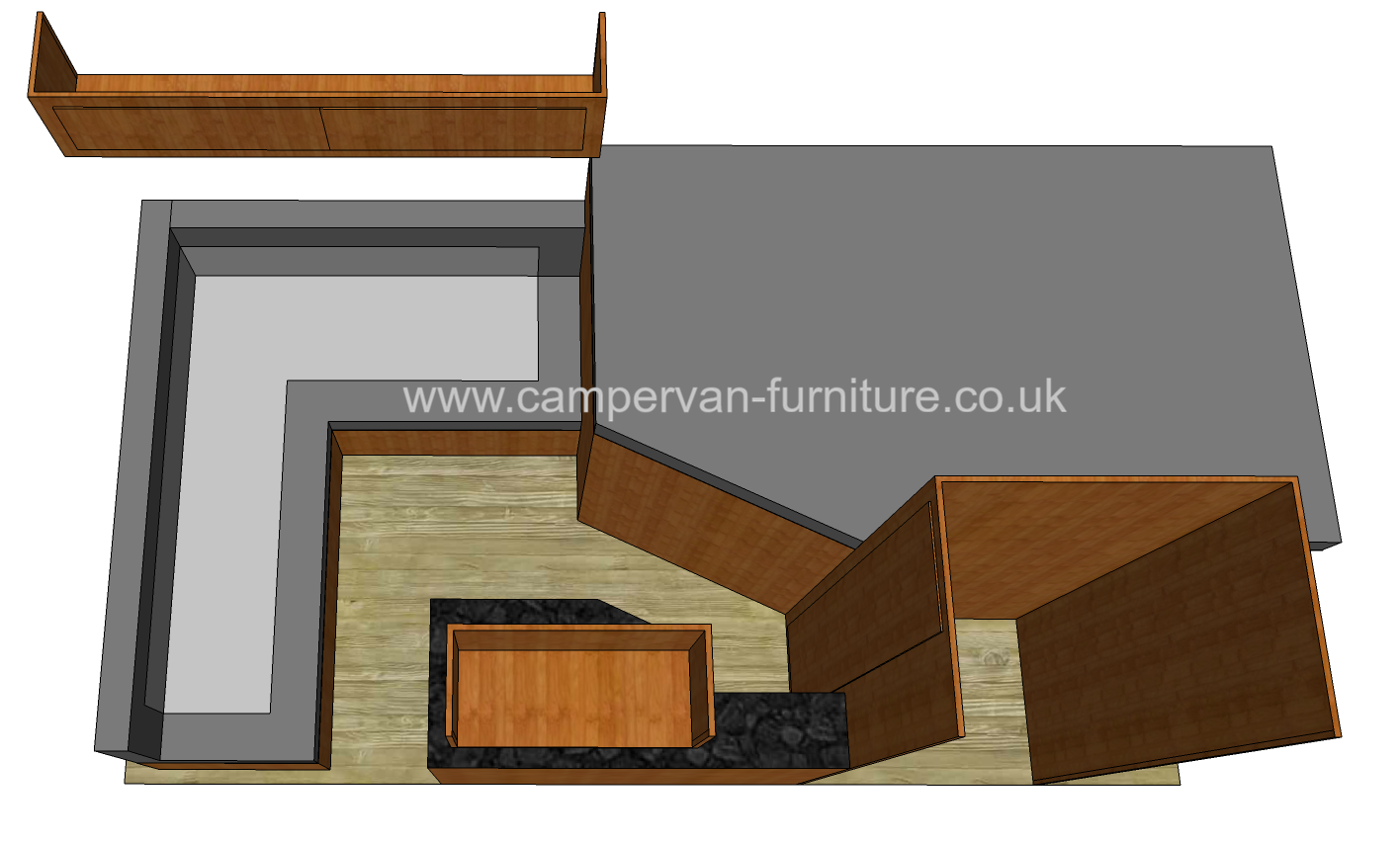

13B) Same as layout 13, 4 Berth Race Van layout with longitudinal garage and L-shape seating, but now based on an L3 Citroen Relay / Peugeot / Boxer Fiat Ducato, LWB Ford Transit, etc

  • This compact version still gives 4 berths, large garage area / fixed bed and good sized seating area which gives a nice space to sit/socialise without the need to swivel the front seats. The main compromise over the L4 / Extra Long van versions is a smaller kitchen unit.

  • Typical cost of this furniture kit is £1955

    Cushions/Mattress available from £745
